Description
Specifications

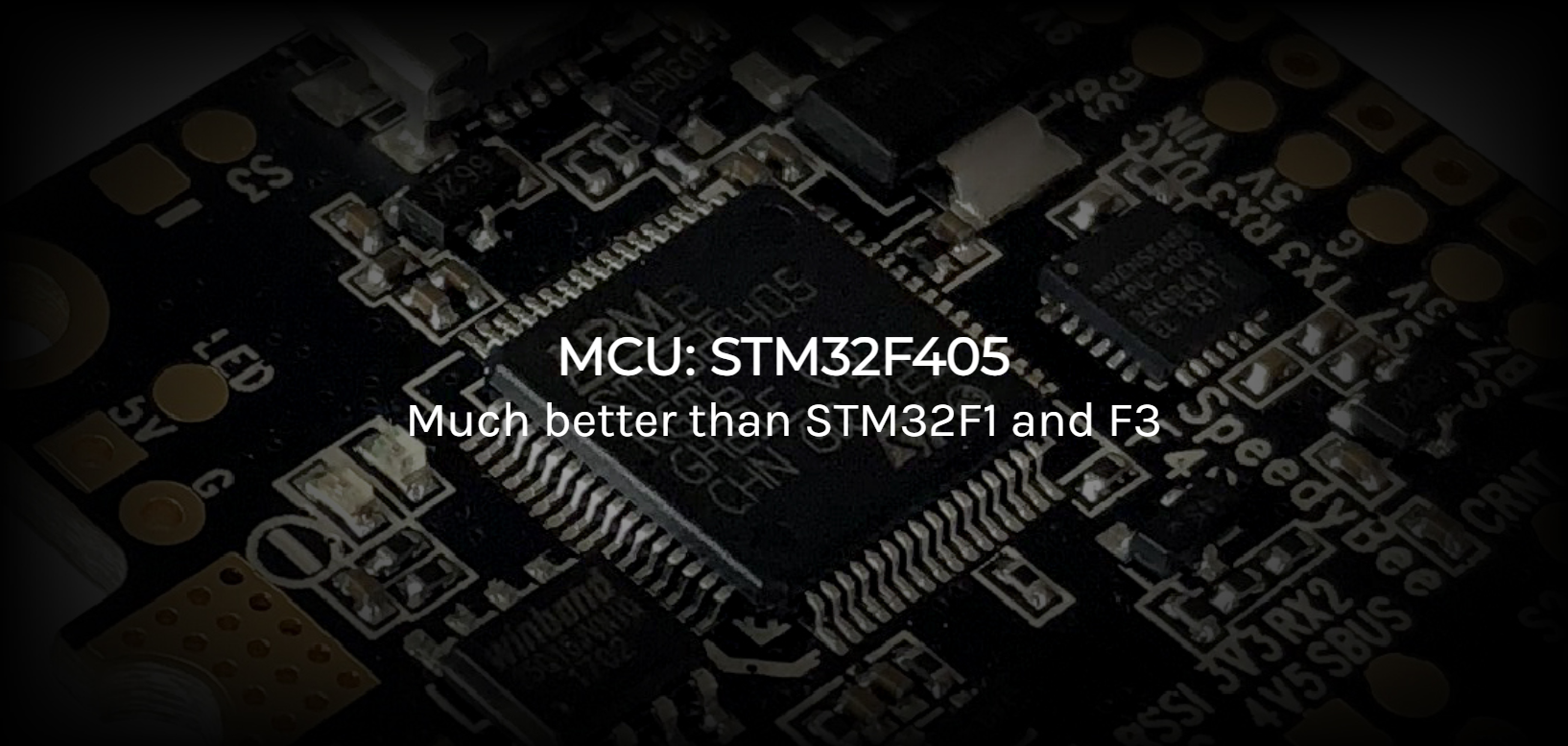

| MCU | STM32F405 |
| IMU | MPU6000 |

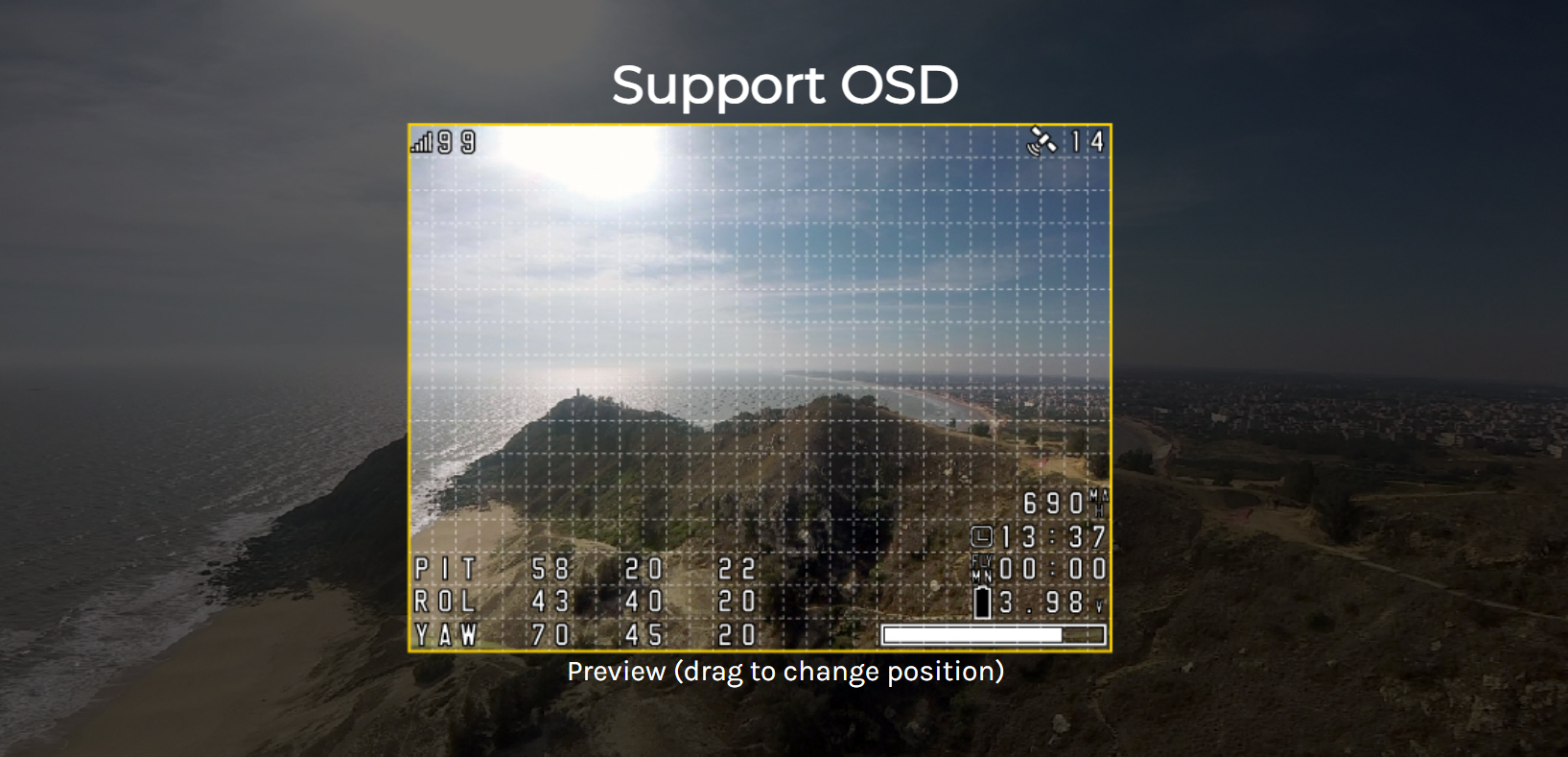

| OSD | BetaFlight OSD w/ AT7456E chip |

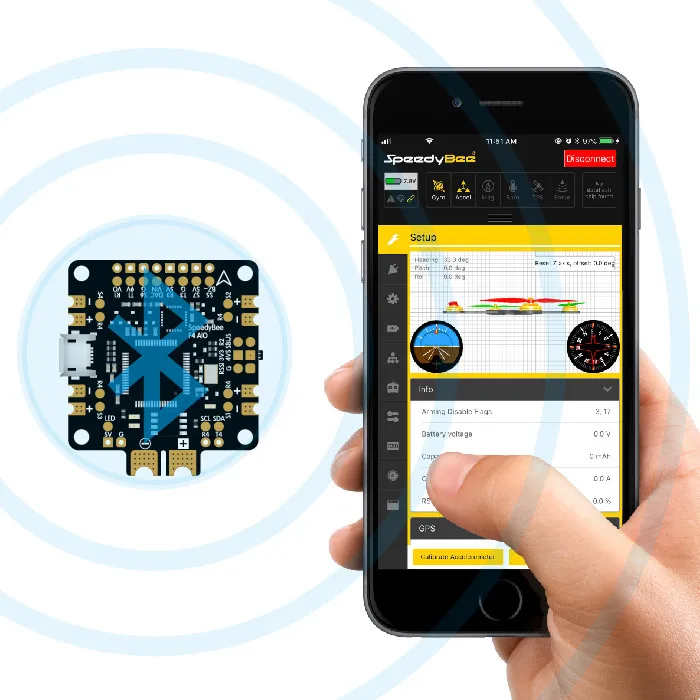

| BLE Module | Inner connect to UART5 for remote setting with Speedy Bee App or other similar apps |
| BlackBox | 16MB onboard dataflash |
| Current Sensor | 200A(Scale 302) |

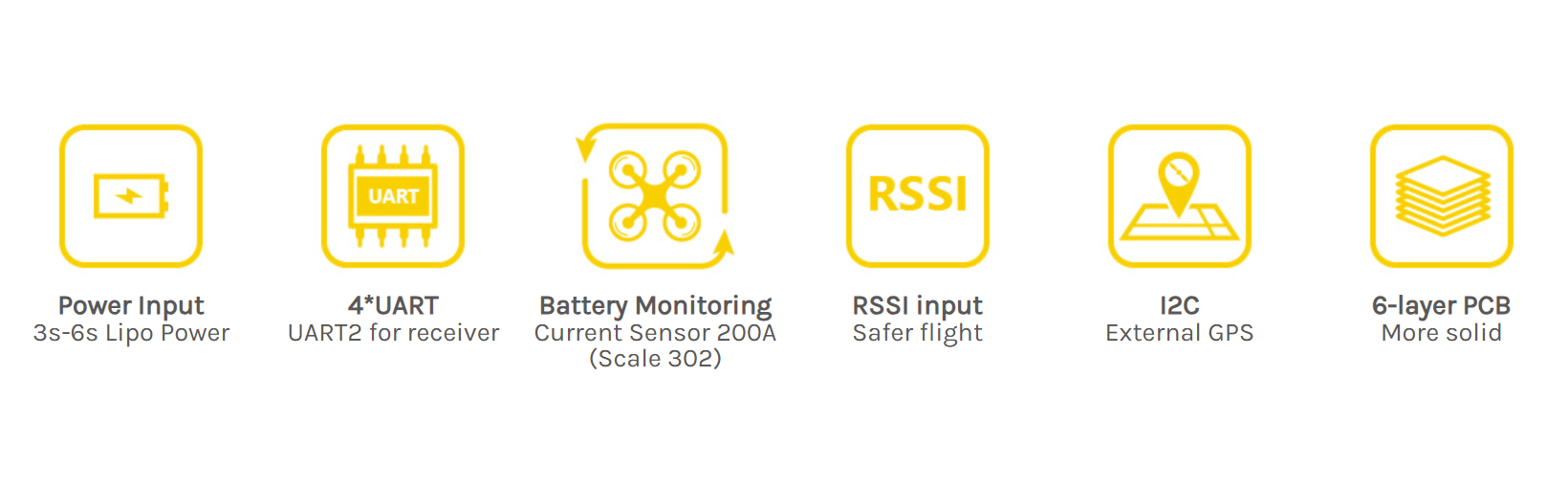

| Power input | 3s – 6s Lipo |

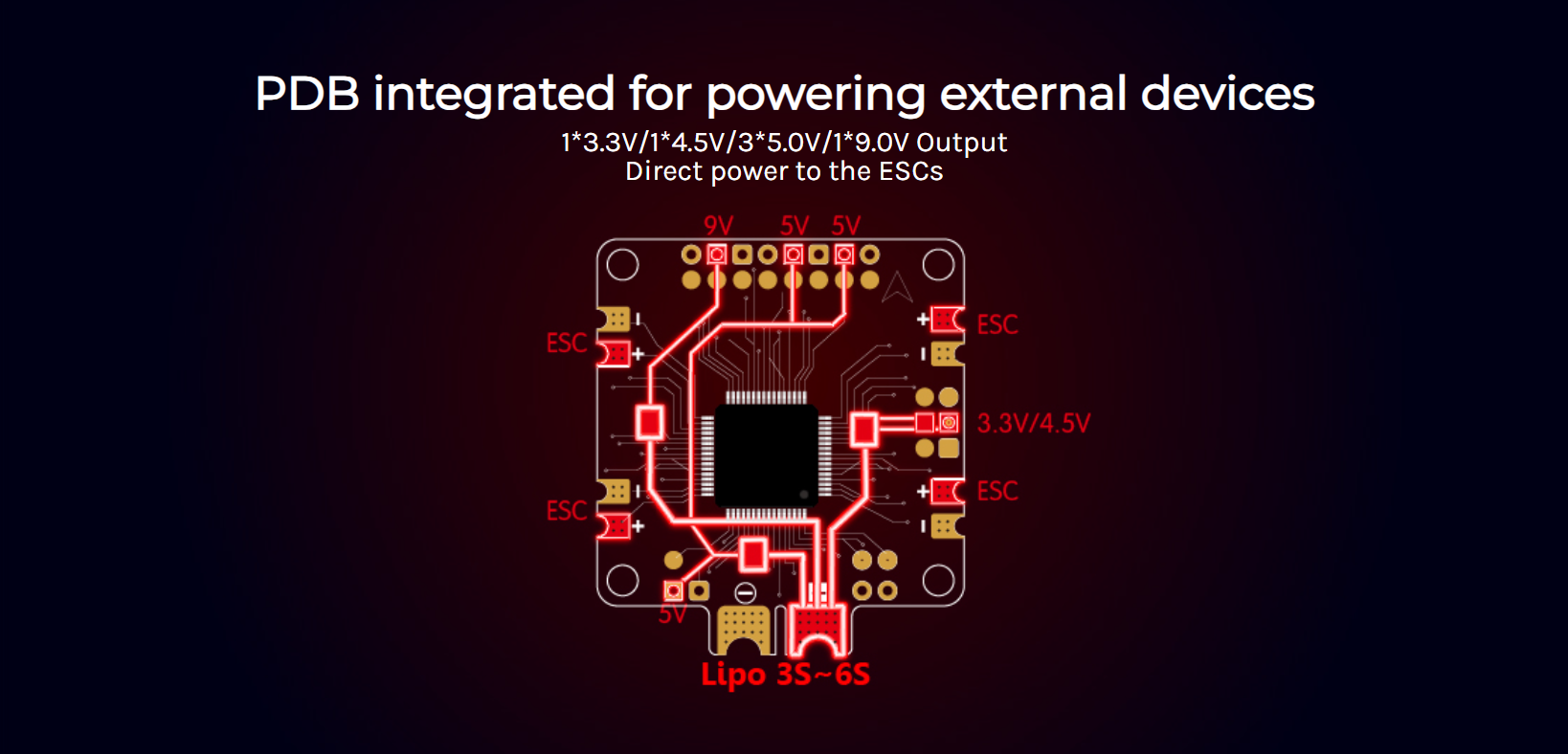

| Power output | 4.5V * 1 , 3.3V * 1, 5V * 3(Max.2A) , 9V * 1(Max.2A) |

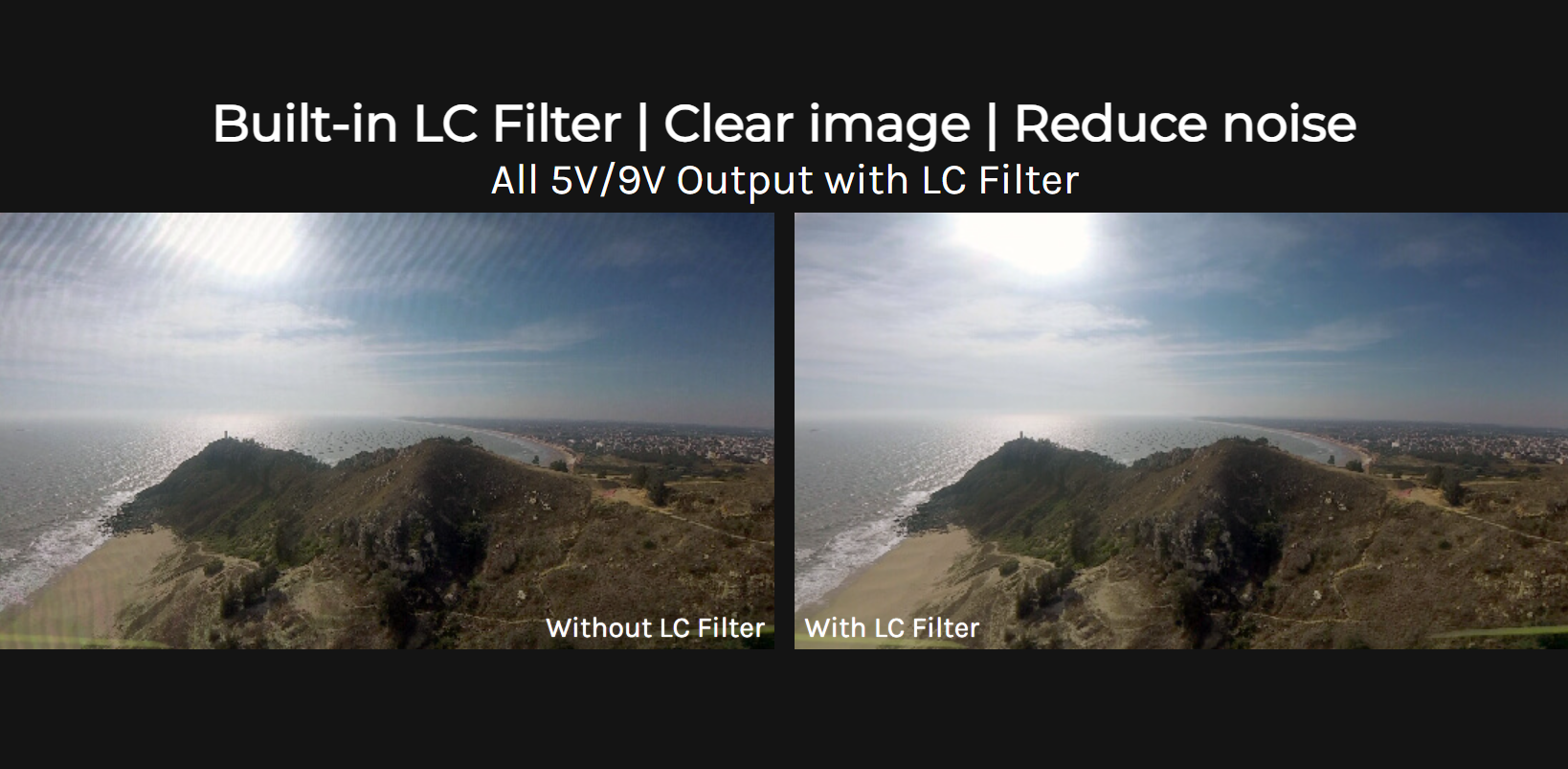

| Cam And VTX power output | Built-in LC-Filter for 5V and 9V |
| ESC power output | 4 * VCC output |
| UART | UART Pads * 3(UART1, UART3, UART4) |
| UART2 for Receiver | Built in inverter of RX2 for SBUS input through SBUS pad, RX2 pad used for PPM, DSM2, DSMX, IBUS |
| RSSI input | RSSI input solder pad |
| I2C | Used for external GPS, Barometer module |
| Buzzer | Buz- and 5V pad used for 5V Buzzer |
| ESC signal | s1 – s7 |
| LED pin | Used for WS2812 LED |
| Boot button | Used to easy enter DFU mode |
| Weight | ≈8.8g |

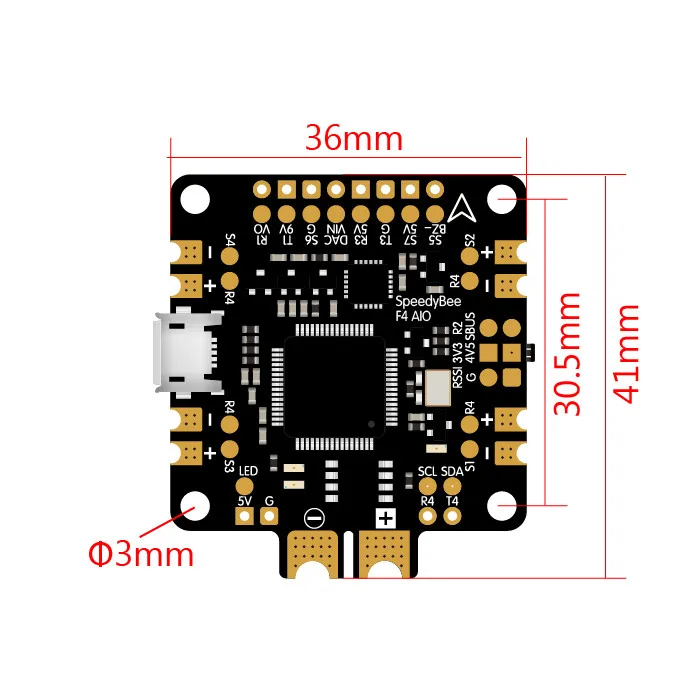

| Dimension | 36*39*7mm |
